Mobile shelving
We have provided our clients with state of the art High-Density Mobile filing Systems for over 15 years.
We install systems for all types storage:
• Business Records, Medical Records, Archive Boxes, Parts, Tools, Hanging files, Museum Artifacts, Art, lever arch files and more.
Our mobile shelving systems come in two different options:
Most of the time we make use of the SET office shelving to fit onto the mobile units.
All our Mobile shelving systems are designed to save floor space.

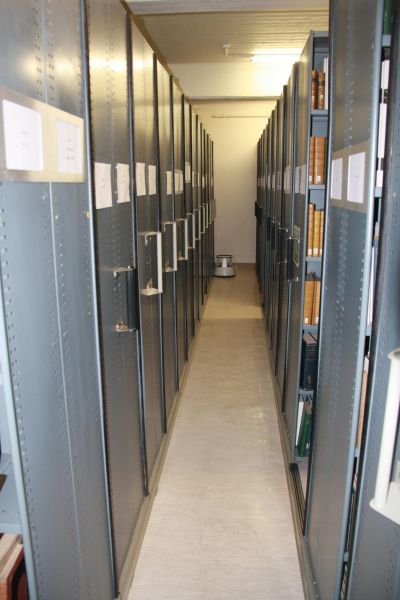

Each bay runs on a track that is installed on the ground. Only one aisle is required to gain access to the system, which can save you up to 80% of floor space.
See more photos below:
|
|

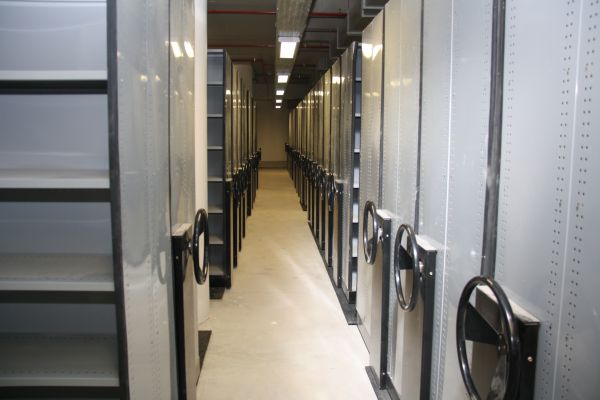

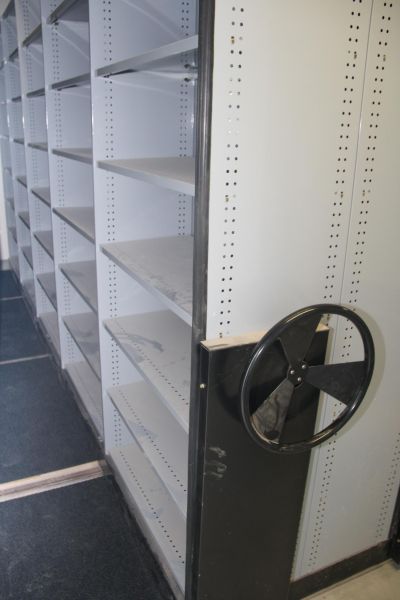

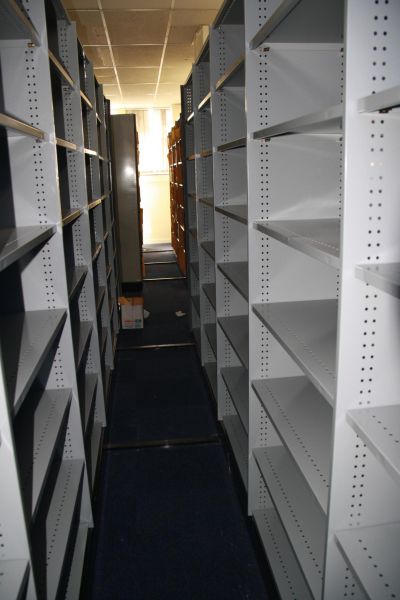

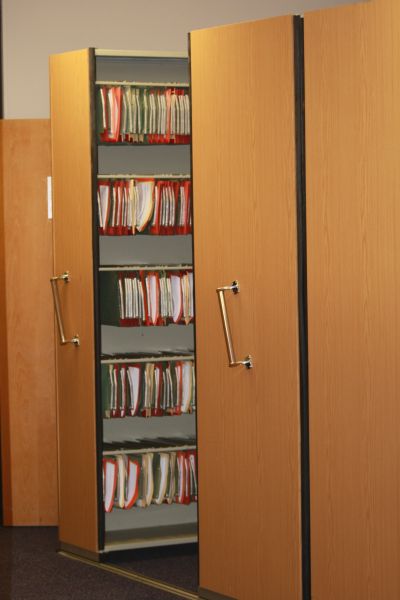

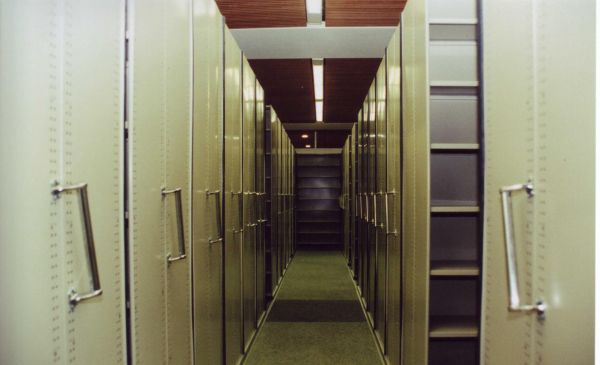

Mechanical mobile

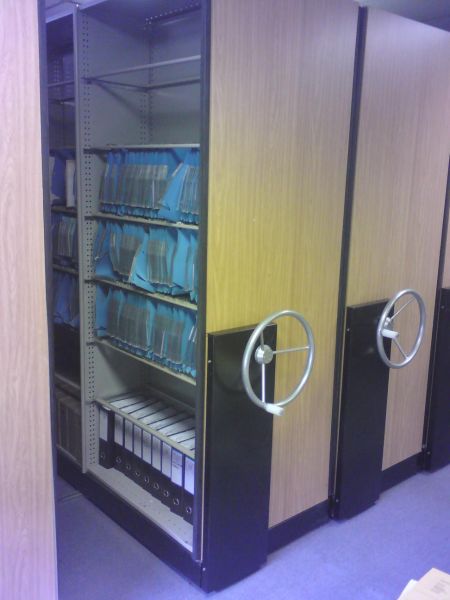

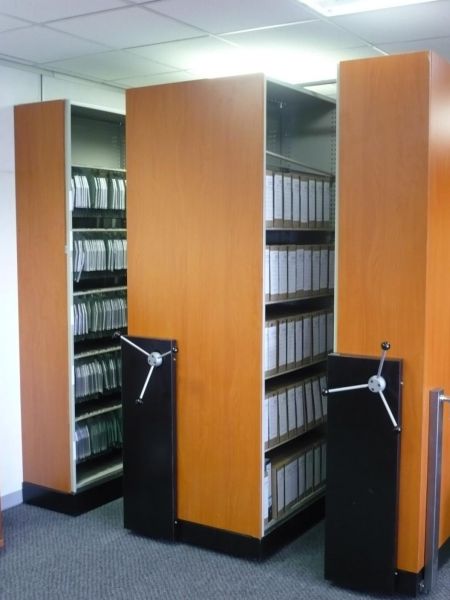

Mechanical mobile

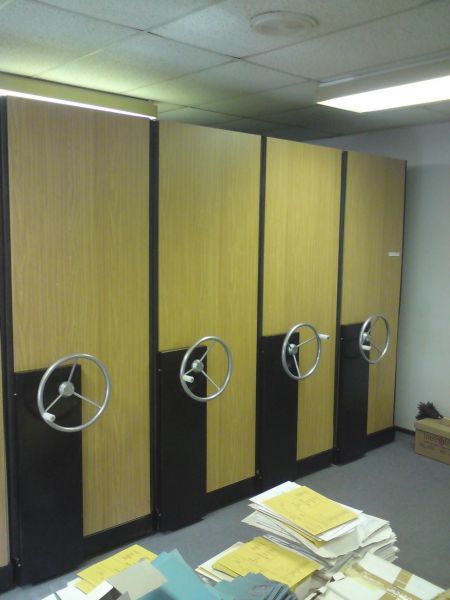

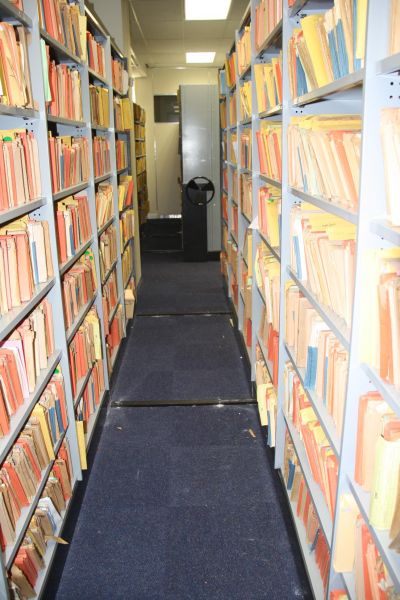

Mechanical mobile

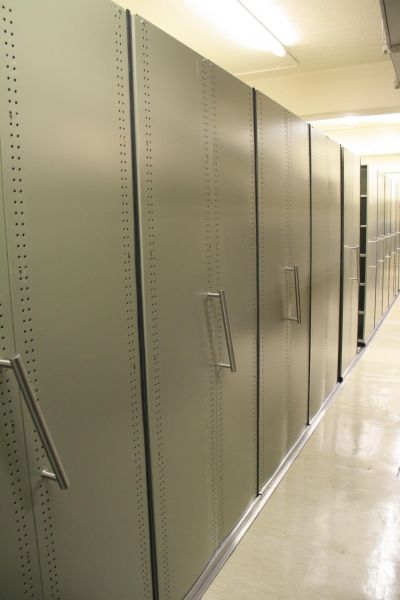

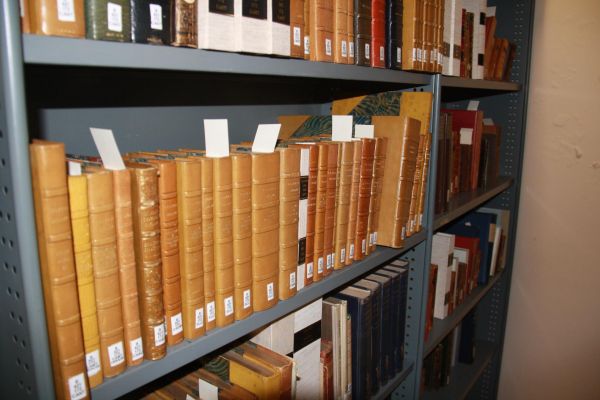

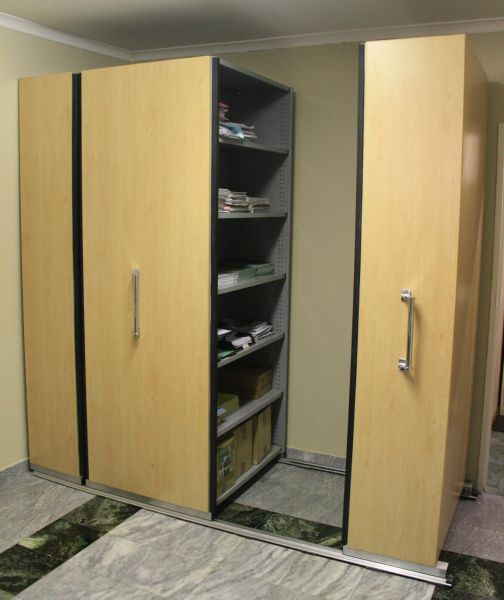

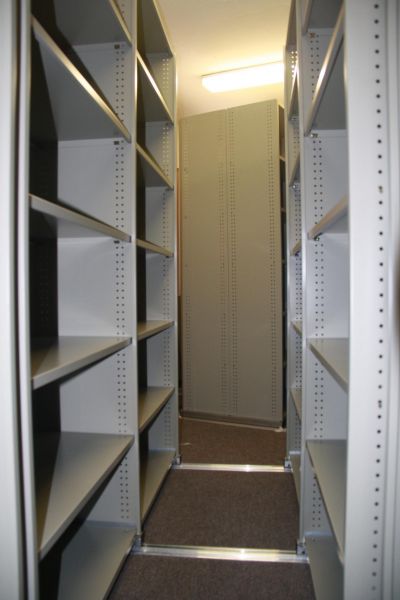

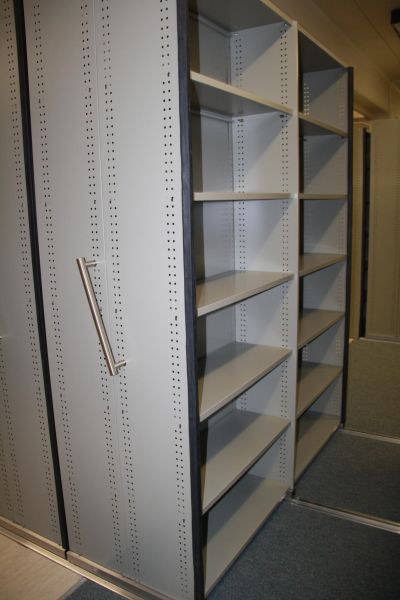

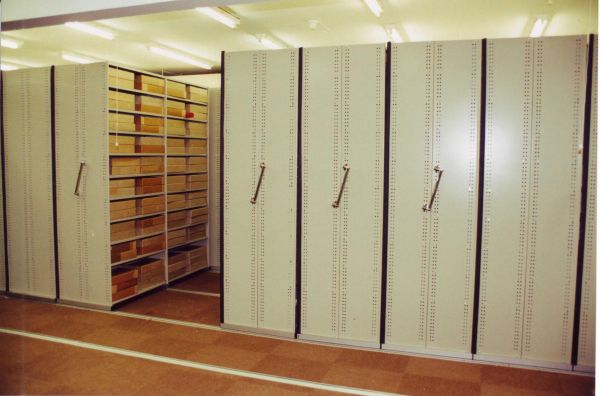

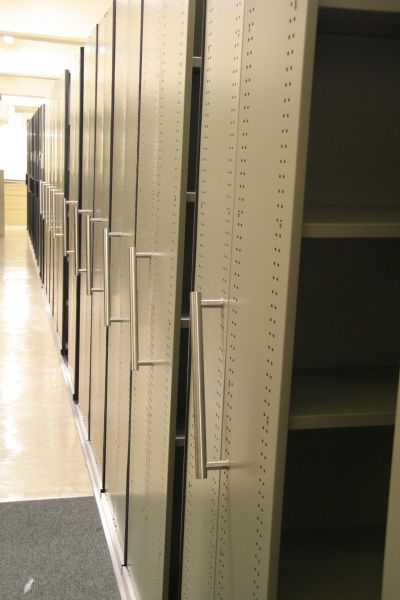

Alu glide

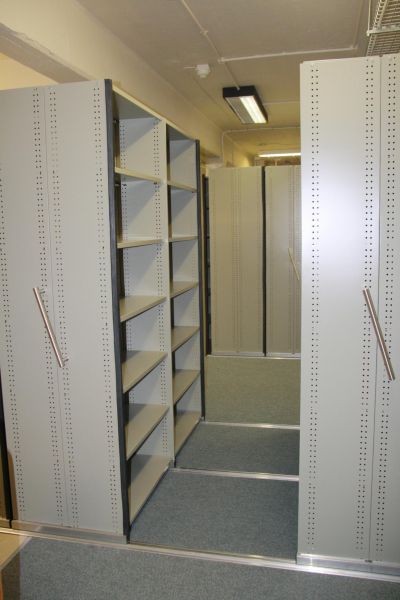

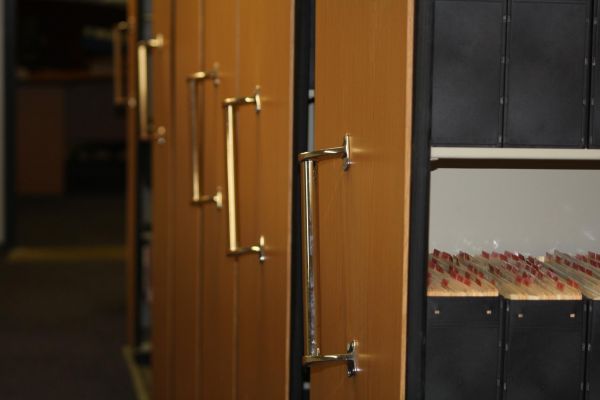

Alu glide

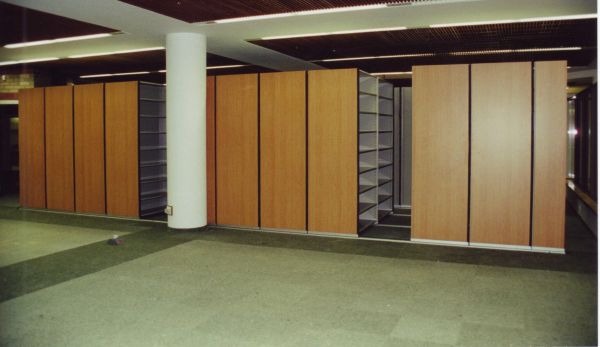

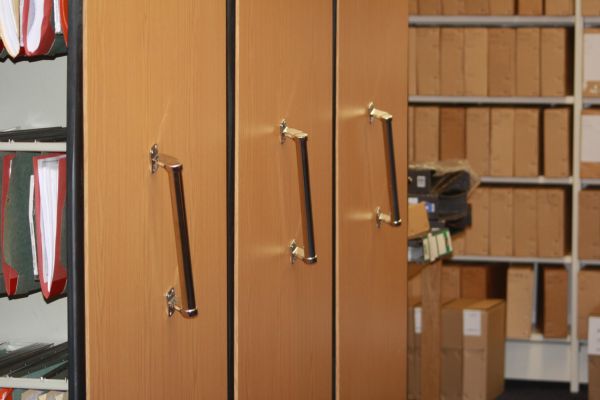

alu glide
Standard Mobile shelving Features:
• Achieves a filing capacity increase of up to 80%
• Different filing options are catered for
• Eliminates unnecessary passageways and saves space
• The track on the floor is easily installed and maintenance free. No floor preparation is required. This makes the system easy to move, easy to relocate or reconfigure
• Standard units can be single or double bay and are lockable
• Back-to-back units allow the viewing of two complete filing bays at any one time
Accessories for Mobile shelving:
• All types of Melamine cladding can be fitted to the sides of the shelving to enhance the overall look of the shelving and to match the furniture in the office.
• Pull-out cradles
• Pull-out drawers
• Wire toaster racks
• Dividers
ECONO ALU-GLIDE
Description

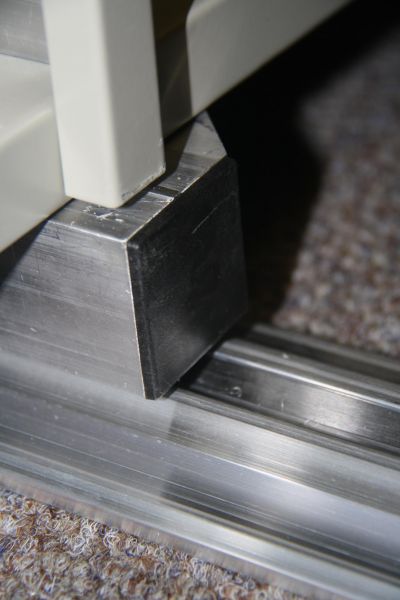

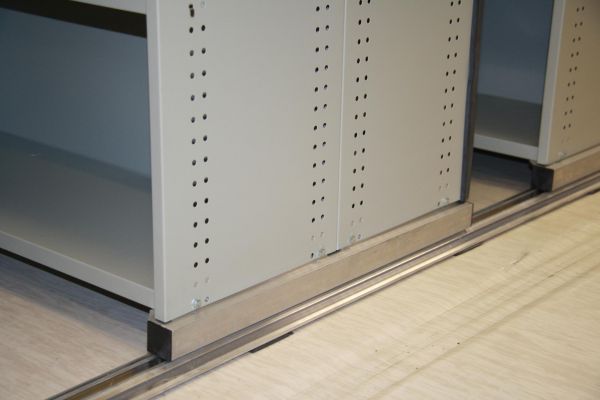

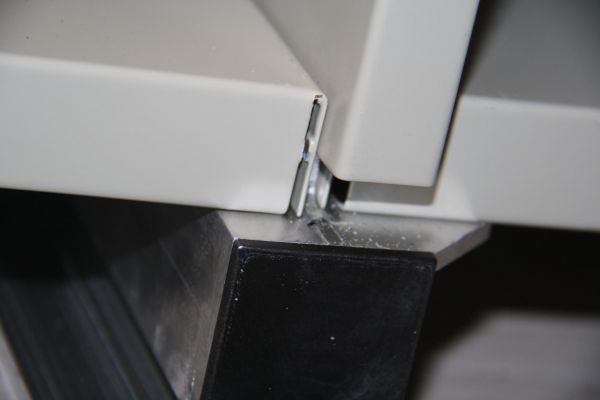

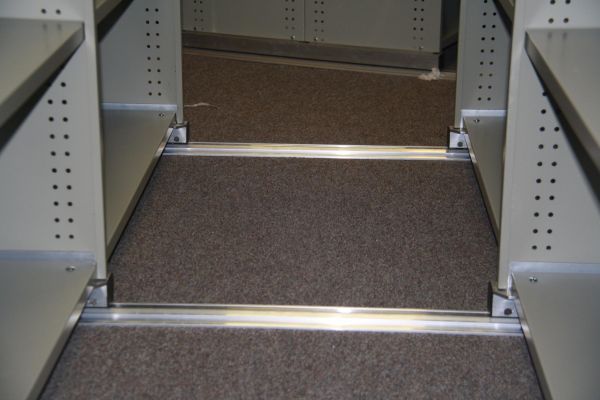

Our Alu-Glide mobile shelving consists of unique low profiled aluminium track with hardened steel inserts which can be installed on most floor surfaces.
All of our Alu-Glide systems are manually operated. (push-pull design)
Tracks do not require fixing which makes the system quick to install, easy to move, easy to relocate or reconfigure. Standard units can be single or double bay and can be locked for security. The Alu-Glide system is perfect for small office environments and even bigger installations like libraries.
Design
This shelving system requires no permanent fixings into the floor. Our Alu-Glide bases can be modified to fit existing shelving if required. All tracks are leveled by the means of shim plates. A fairly level area is required for the units to work properly and a site assessment prior to installation is necessary.
All Shelving systems are fixed on top of the bases. Each single movable base is fitted with anti-tilt brackets for extra stability. Rubber buffers are fitted to the side of the SET shelving where the panels but up against each other.
We can install as many mobile bays in a single run as required for optimum utilization of floor space.
Units come in 2 sizes:
- Single Entry Bays – 950 mm Wide
- Tandem Entry Bays – 1900 mm Wide (2 bays side-by-side)
All of our SET shelving range can fit onto the mobile bases.
In Short:
- Ideal for small office areas to create most storage space.
- Manually operated (push-pull design)
- Can be cladded to match the look of existing office furniture.
- No permanent fixings into floor surface.
- Shelves are easy to adjust
- Easy to install and relocate if required.

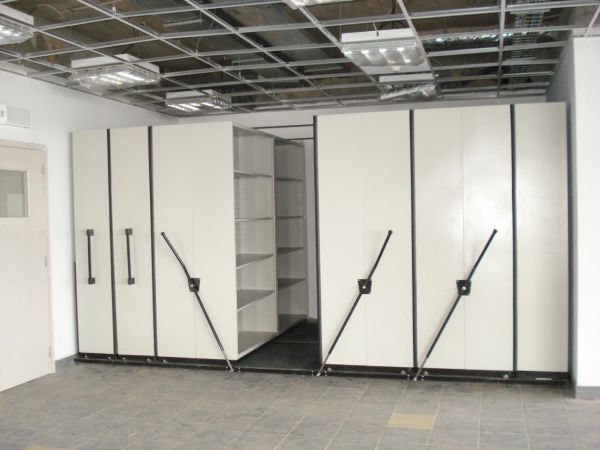

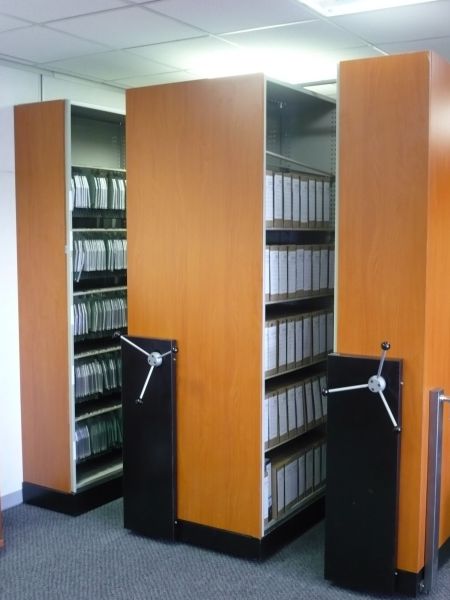

MECHANICAL ASSITED MOBILE
Description
Our Mechanical Assisted mobile shelving consists of hard drawn steel track that can be installed on most floor surfaces.
Each of the units is mechanically assisted by means of a chain drive operation.
Multiple units can be joined together to maximize the floor space.
These mobiles are mainly used if more than three bays are joined together.
Design
The tracks need to be fixed to the floor surface. A chipboard base can be inserted to create a platform, if required. All tracks are leveled by the means of shim plates. A fairly level area is required for the units to work properly and a site assessment prior to installation is necessary.

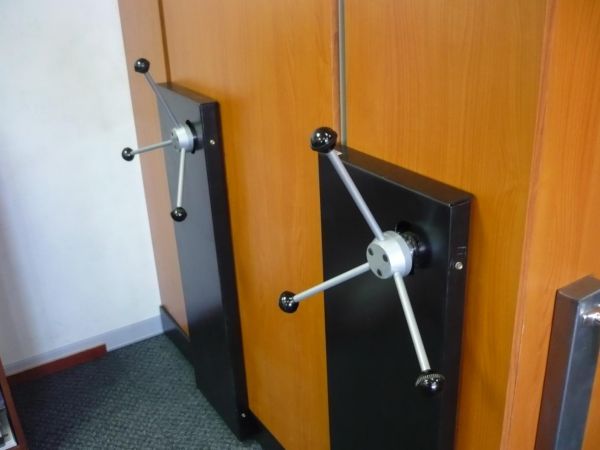

All bases to be mechanically operated using a Single/Double reduction system reducing the weight when operating the system. Mechanical assisted base operation is moved by turning a handle which is connected to a drive shaft through a chain and sprocket reduction. The shaft connects all the wheels on one side of the base to ensure that the base runs squarely on the track.
All Shelving systems are fixed on top of the bases. Each single movable base is fitted with anti-tilt brackets for extra stability.
Rubber buffers are fitted to the side of the SET shelving where the panels but up against each other.
We can install as many mobile bays in a single run as required for optimum utilization of floor space.
Multiple units can be joined together: (up to 6 bays wide)
• 1 Bay wide = 970 mm
• 2 Bays wide = 1890 mm
• 3 bays wide = 2810 mm
• 4 bays wide = 3730 mm
• 5 Bays wide = 4700 mm
• 6 bays wide = 5620 mm
All of our SET shelving range can fit onto the mobile bases.
In Short:
• Ideal for big installations to optimize floor space.
• Can be cladded to match the look of existing office furniture.

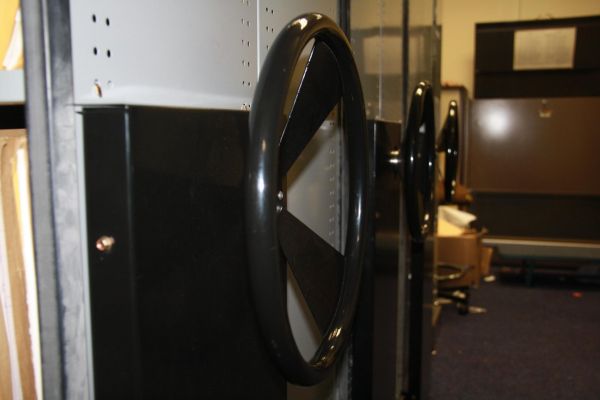

• Mechanically operated with steering wheel.
• Shelves are easy to adjust
